Sewage diposal CHINA FACTORY SALES 4cm JET VACUUM TRUCKS

1 Unit
MOQ
$17,560.00(1 - 4 Units) $16,570.00(>=5 Units)
prezzo
Sewage diposal CHINA FACTORY SALES 4cm JET VACUUM TRUCKS
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Transmission Type: Manual
Condition: New
Emission Standard: Euro 3
Fuel Type: Diesel
Tank Volume: 4000L
车身尺寸: 6200X2000X2200
Horsepower: 120hp
Gross Vehicle Weight: 6495
name: CHINA FACTORY SALES 4cm JET VACUUM TRUCKS
capacity: 4000L
reel length: 60M
Certificate: Dongfeng cleaning truck 4X2 mini road sweeper
Drive type: 4x2
Product name: vacuum truck
Chassis brand: Dongfeng Foton Forland Howo Faw
Use: sewage diposal
Tank capacity: 3CBM 4CBM 5CBM 6CBM
Tank Material: Carbon steel
Informazioni di base
Certificazione: Dongfeng cleaning truck 4X2 mini road sweeper
Termini di pagamento e spedizione
Packaging Details: nude by R-R ship or Wax spraying by bulk ship
Supply Ability: 300 Unit/Units per Month CHINA FACTORY SALES 4cm JET VACUUM TRUCKS
Descrizione di prodotto

CHINA FACTORY SALES 4cm JET VACUUM TRUCKS has two function , one is jet purpose , one is sewage suction purpose ,has 2nos reels high pressure pipe , one is suction hose ,



cubage from 2000L-16000L



The drive type with 4*2,4*4,6*4,6*6,8*4, you can choose left hand drive



Many truck chassis for you choice,such as Dongfeng,FAW,North Benz,Foton,NISSAN,Hino,

HOWO,SINOTRUK,JAC,ISUZU,etc.



Tank shape has two , one is seperated form , the other is combin type , based on customer's requirements .



Product Description

.CHINA FACTORY SALES 4cm JET VACUUM TRUCKS specification :



Vehicle model Dongfeng High pressure cleaning truck
Chassis model  EQ1060TJ20D3
Overall dimensionsmm6200X2000X2200
Fact cubageL4000
Mass in working orderkgAppro*3400(ref)
Wheel basemm3300
EngineDisplacement/power3856/70KW
ModelCY4102C3F
Torque
Max speedkm/h
Tire specification7.00-16Drive seatLHD
Electric system24vtransmission5 speed
Cabinair conditioning / radio / cassette / oil brake / cab can flip / power steering
FrameCollision energy absorbing frame + double no exposed rivets + double hydraulic shock absorber
ColorIdentify by customer
Equipment
High pressure pump3DS-8/16,GYB-8/16
Flow8m3/h
Rated pressure16-19Mpa
Reel speed0-25m/min
Pipe length60m
Pump DIA19mm
High pressure nozzle10Nos
ComponentsWater system: including water tank, high pressure water pump (Italy imported pump), inlet pipe, water cutoff valve, water filter, water table, water shut-off valve, water pressure gauge, pressure switch, high pressure nozzle, high pressure three way valve ,reel.
Hydraulic system: including oil level gauge, fuel tank, filter, gate valve, oil pump, relief valve, throttle valve, oil pressure meter, check valve, oil motor, reversing valve, check valve and switch.
Optional: Sprinkler installation, installation of green watering cannon, forward, after the sprinkler, side spray, can be green watering, spray, dust, high pressure washing the road, but also installation of sewage pollution function, cleaning, In one.

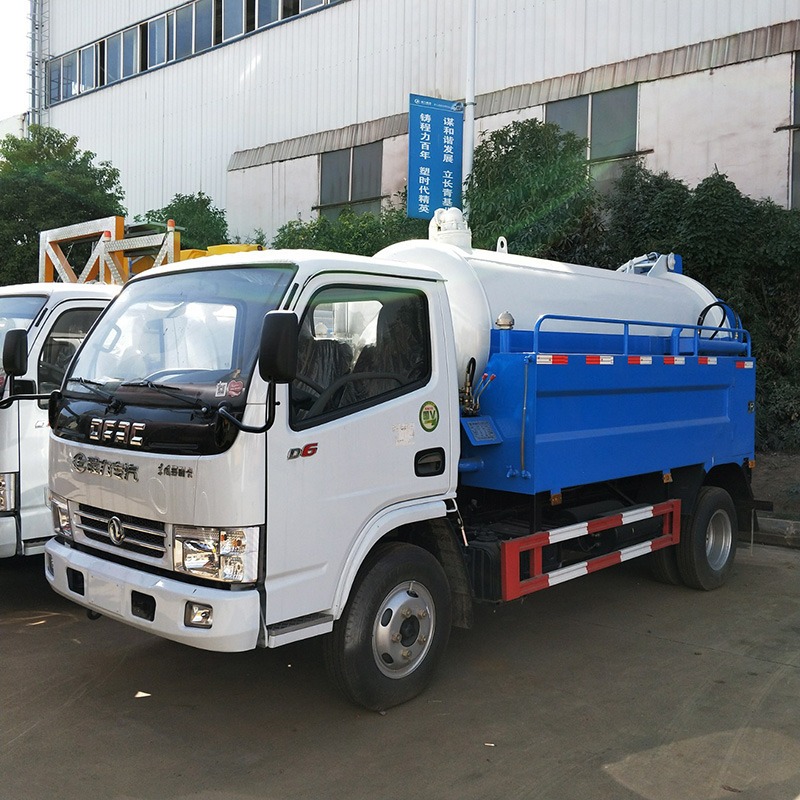

Photo of CHINA FACTORY SALES 4cm JET VACUUM TRUCKS:





Road sweeper truck we made :



Certificate



Factory overview



FAQ

Q1. Quality control
A:We make quality control for each step while producing and before shipping.



Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. LC terms is also can be accepted .



Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .



Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.For standard products, delivery time is as below:
Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)



Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q6. How to control truck quality?
A: we have Rich experience workers and engineer to control quality before and on production , we strictly followed STATE special truck technical specification and safety production specification
We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.



Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery



Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q9. Did you sell truck to our country before?
A:Our main market is Africa, Asia, South America , Oceania ,middle east , annual sales is around 5000units and keeping growing every year .

Packaging & Shipping



Shipment is depend on truck size ,desitination port size , and client's budget , this is client's option ,
