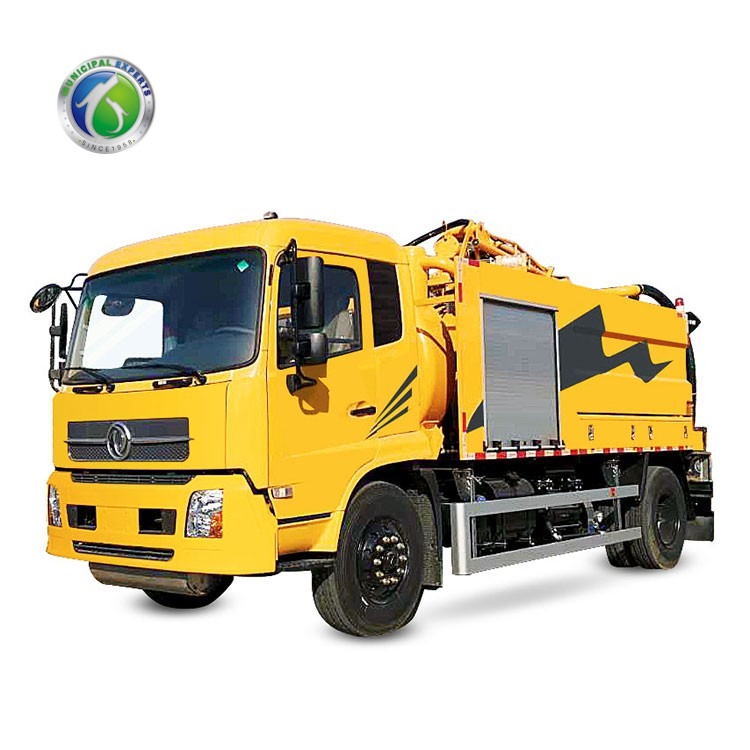

High Pressure Vacuum Sewage Suction Vacuum Truck

1 unit
MOQ
High Pressure Vacuum Sewage Suction Vacuum Truck
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Transmission Type: Automatic
Condition: New
Emission Standard: EURO 5
Fuel Type: Diesel
Tank Volume: 6000L
车身尺寸: 8750*2490*3550mm
Horsepower: 270
Gross Vehicle Weight: 15800
After-sales Service Provided: Online support
Capacity (Load): 1-10T
Chassis brand: DongFeng
Drive type: 4X2
Water tank capacity: 4 m3
Max working pump: 210 bar
Dredging distance: ≥ 80 m
Nozzle: import
Vacuum pump model: Liquid vacuum pump
Vacuum degree: -0.9 bar
Function: High pressure dredging jetting
Feature: Vacuum system,Reverse discharge system
Informazioni di base
Model Number: Liquid vacuum pump
Termini di pagamento e spedizione
Packaging Details: according to your requirements or truck waxing,Naked / container
Supply Ability: 50 Unit/Units per Month
Descrizione di prodotto

High pressure Sewage Suction Vacuum Truck

Product Description



What is the main Application of the Combi Truck and Characteristics?



1.The combi vaccum tanker with jetting,dredging,suction and recycling facility is adopted top Europe technology and it is the best suction vehicle currently.We can choose different trucks according to customers' need.



2.The complete is smaller,suitable for narrow working condition as emergency equipment.It's lighter,more economic and energy-saving with higher cost-effective.



Main Technical Parameter Show Blow:



  Item Parameters
Whole tank vehicle Name Combination Vacuum Jetting Truck
Chassis

DONGFENG, SINOTRUK, ISUZU
Wheelbase 4350+13500 mm
GVW 25000 kg
Payload 6570 mm
Dimension  9800*2496*3780 mm



Sludge and Water Tank



Material

Mild steel

Capacity

6,000L sludge tank & 4,000L fresh water tank

Shell thickness

5mm

Tipping cylinder

Front tipping and double acting cylinder

Safety support

Support the tank to ensure safety when it’s tipped up

Sight glasses

3units are mounted at the rear of the tank

Over pressure safety

Over pressure relief valve on tank top

Full opening rear lid

Hydraulically opening and locking

Inlet and Outlet Valve

Pneumatically and Manual operation

Primary shut off

  SS float ball prevents overfilling sludge tank.



Our Services

We factory promises the following services:



1.Before sale----

  Technical exchanges with customers,demonstrations,explore individual solutions.



2.Insale---

   Fully implement the best customized solutions,enhance process control and optimization.



3.After-sale---

   Free training,tracking guide,24 hours feedback service program.



 Long and Reliable Cooperation Starts from This Moment You Click

Related Products
Company Information

Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...

Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…

Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.







Why choose us?

What's our factory Professional advantage?



1. Use Split shaft PTO(Transfer case),which is common in Euro and America.Comparing to sandwish PTO used by other Chinese supplier,our method doesn't need to break down transmission box and don't change the transmission accuracy.



2.Jetting water pressure id pneumatically controlled.Avoid the sudden high pressure which may happen if you choose three-way value supplied by other Chinese factory.Our pneumatic safety valve is from Italy together with the water pump.



3.Use Liquid ring vacuum pump.Comparing to air cooling vane pump,air flow up to 2800m3/h,-0.95bar vacuum level and long continuous work time due to water cooling type.



4.Reverse discharge capability discharges water and leaves sludge,reduces round trip times between drainage well and dumping site.



5.Jetting nozzle works with linear high pressure water flow,makes the most effective use the water pressure.



6.Multiple safety protections,includ ultrasonic liquid level indicator,float ball,pressure safety value at the top of tank and vacuum air lines.



Where is need to Use our vehicle?

To unblock and clean sewer. To vacuum suck liquid waste and clean drainage well. Dry material vacuum suction truck suck and transport powder, coal in power plant, dust or cement.

FAQ
Q1:Are you a factoty or trading company?
A1:We are professional manufacturer and seller with the experience of over 30 years.
Q2:What about the quality?
A2:Quality is priority .All the products will be 100% check before shipment .We check our products one by one before we pack and ship to make sure they are all what you ordered,to make sure the quantity and in good condition.
Q3:How can I get lower price ?
A3:We are factory manufacturer , we will provide competitive price for you , pls contact our salesman, you will get more discount.
Q4:How is your truck meeting our country standard?
A4:Firstly,we have 30 years exporting experiecne,OEM is avaliable for our customers.

Secondly,All our trucks will be made according to different countries standard, and accepted been tested and confirmed by customers before loading. we will provide valid chassis number and documents which can help register the truck on road of buyer's countries..
Q5:How long does the shipping will take ?
A5:For production,We will send the goods within 30 days after 30% deposit has been confirmed.
Q6: What's the payment terms?
A6:We accept T/T, Paypal, L/C ,Secure payment, alipay and so on ...
Q7:Could you accept OEM order?
A7:We have professional designers who can design your logo and offer best solution & styles for your OEM products.
Q8:Do you have experience to export Vacuum Truck  oversea?which countries did you export before?
A8:Dear ,we have lots of experiences to export to many countries before,eg.
Australia,Southeast Asia,Middle East,Africa,Russia,South America,Korea,Japan and so on.
